Grading Issue, help!

Why is it that when I apply grading to the cut line, it doesn't apply to the sew line, and vice versa? I have been using this program off and on for over 20 years, I'm using the cloud program and paying quite a bit for it, and this issue still exists? I remember this being a problem in Version 4! Is there a trick to this? Do the programmers know about this issue?
The base pattern is complete, grading stage is on and after grading a pattern, I see that the grading didn't translate to the sew line. What a mess. I worry about conversion now and if it will work properly. Its confusing to see the sew line take a different grade and I cant rework the illustration line in with the cut line showing.
Help!

alisonheadstudio's avatar
1
alisonheadstudio
asked 2025-11-21 19:46:00 +0000
edit flag offensive 0 remove flag close merge delete

Comments

add a comment see more comments

1 Answer

0

May I ask for a bit more information so I can better understand the issue you are experiencing? From what I understand, you graded the sizes from the cut line but noticed that the sewing line did not follow the same grading values, is that correct?

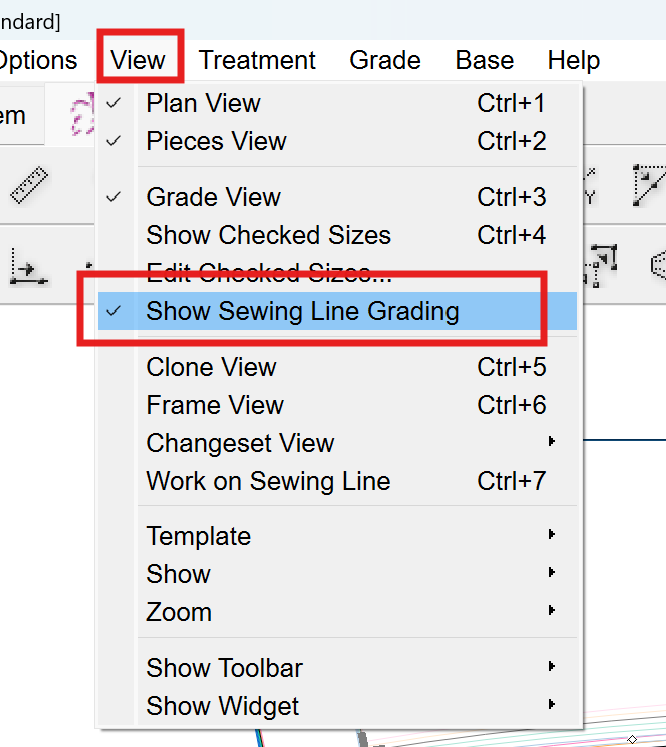

If so, I would recommend going to View Menu and enabling Show Sewing Line Grading. Once this is turned on, you should be able to see the grading values applied to the sewing line as well.

image description

Bo's avatar
1
Bo
answered 2025-11-24 03:45:30 +0000
